  WELL2820 Shimadzu UV-3600 NIR, MPC-3100 Multi-Purpose Large Sample Compartment

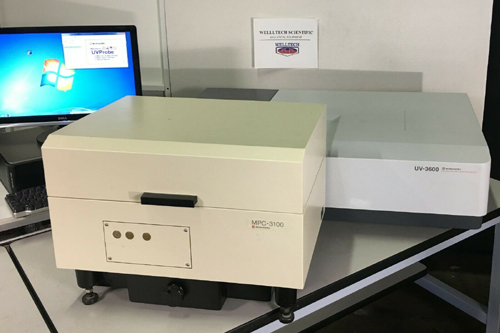

Shimadzu UV-3600 UV/Vis/NIR Spectrophotometer that has equipped with a MPC-3100 Multi-Purpose Large Sample Compartment (a 60mm Integrating Sphere built in a X-Y adjusting optical testing bench). A high-performance double monochromator makes it possible to attain an ultra-low stray- light level (0.00005 % max. at 340 nm) with a high resolution (maximum resolution: 0.1 nm). The wide wavelength range of 185 to 3,300 nm enables measurement across the ultraviolet, visible, and near-infrared regions. This instrument can perform spectrophotometry for a variety of applications. This UV-3600 UV-VIS-NIR spectrophotometer with three detectors, consisting of a PMT (photomultiplier tube) for the ultraviolet and visible regions and InGaAs and cooled PbS detectors for the near-infrared region. Using an InGaAs detector to ensures high sensitivity across the entire measured wavelength range, and gives a noise level of 0.00003 Abs at 1500 nm. Capabilities:
  • 185 to 3300 nm range (UV-3600)
  • 240 to 2600 nm (MPC-3100)
  • Maximum sample size (MPC-3100):
  • Transmission: 305 mm dia. x 50 mm T or 204 mm dia. x 300 mm
  • Reflectance: 305 mm dia.
       ... more


  •  Sale Price: RQ
