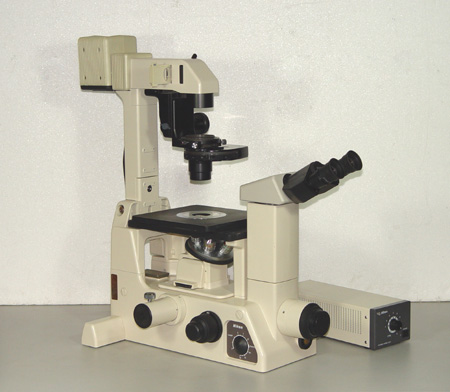

: Nikon DIAPHOT-300 Research-Grade Inverted Microscope |
|
|
This Nikon DIAPHOT-300 Bio microscope is One
of the top-line research-grade inverted
microscopes. It consists of the following
options;
Nikon DIAPHOT-300 Inverted
Microscope Frame, Stable Die Cast
Bddy.
Nikon Binocular Head, Focus & Eye-
distance adjustable, with (a pair of) Nikon
CFWN 10x/20 widefield, high eye-point
eyepieces with focusable top lens for
individual diopter adjustment; removable
reticle holder.
Diaphot 12V, 100W Koehler Illumination
System; Lamp Housing; Holder for 45mm
filters.
Wide Mechanical Stage
Centerable Condenser Mount on Swing-Up
Arm, Focusable.
Nikon LWD (Long Working Distance) 0.52
Phase Condenser Turret (PhL, Ph1, Ph2, Ph3)
6-Place Focusing Ball-beraing Turret
Nosepiece w/ 3 Nikon Phase Objectives, Long
Working Distance:
#1.PhL -- Nikon Plan 4x / 0.13 DL, 160 / -
#2.Ph1 -– Nikon Plan 10x / 0.30 DL, 160 /
0.17 #3. Ph2 -– Nikon Plan 20x / 0.40 DM,
160 / 1.2 ELWD
Camera Port-#1: Front mounted camera
port for a Nikon digital (or 35mm) camera
Camera Port-#2: Side mounted camera
port for CCD/CCTV/Multi-Format
Photo/Cinemicrography
... more
|
|
|
|
| |
